M-H 4.7 Military Equipment Transport Trailer

M-H 4.7 Military Equipment Transport Trailer

When agility, strength, reliability and performance is paramount over all types of terrain, in all types of weather.

The M-H, CS – 4.7. is a versatile military grade platform, that is able to accommodate a wide variety of integrated cargo transportation needs.

Providing the mobility, transportability and survivability, that is critical to mission success.

Incorporating Land Force Defence & Mobility’s revolutionary new modular off road trailer chassis and independent off road suspension assembly. The M-H CS – 4.7. has been designed to negotiate the toughest of off-road conditions while also meeting stringent weight and size restrictions. allowing us to maximize compatibility, with air transportability.

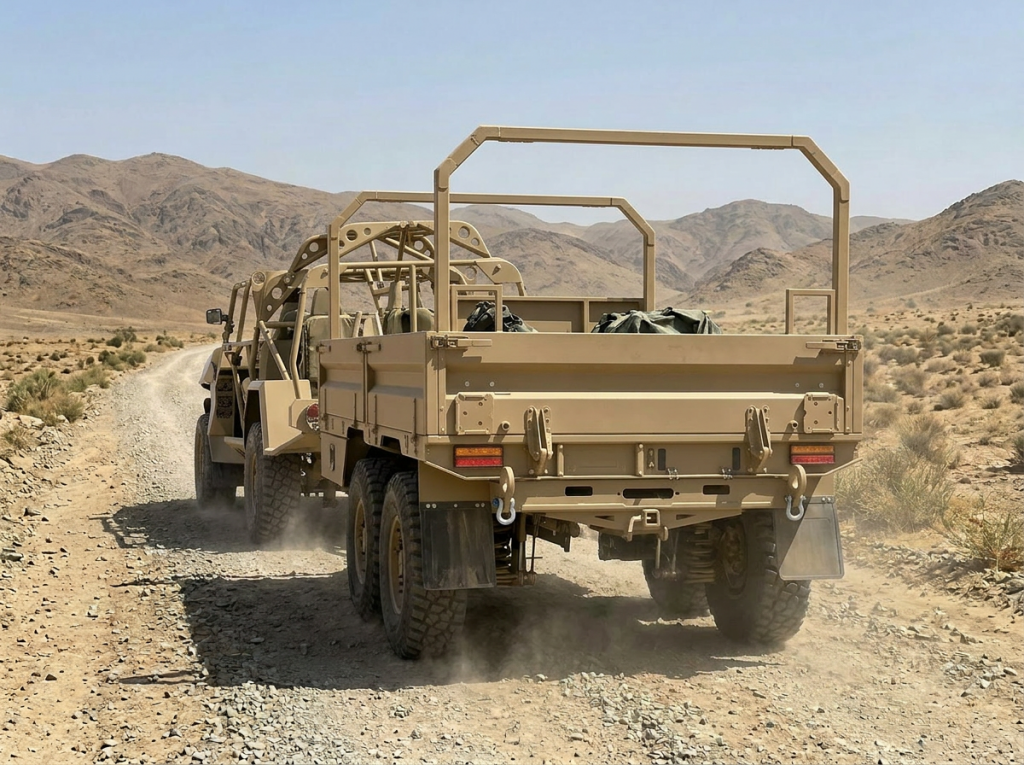

M-H 4.7 Military Equipment Transport Trailer has a removable and stowable headboard, drop sides and tailgate. Making loading and unloading easier and faster. In addition, strategically placed internal and external cargo tie-downs help secure a full range of cargo options.

TRAILER SIZE :

  • Overall Vehicle Length 4.7 mtrs.
  • Overall Vehicle Width 3.0m Long x 1.85m Wide.
  • Tray height 900 mm.
  • Height to top of head board 1.38m.
  • TARE: 1225 kg.
  • ATM: 3,500Kgs to 4,500Kgs Depending on coil spring rates.
  • Ball Weight: 161 kg.
  • Internal Air Transport and Sling Load Capable.

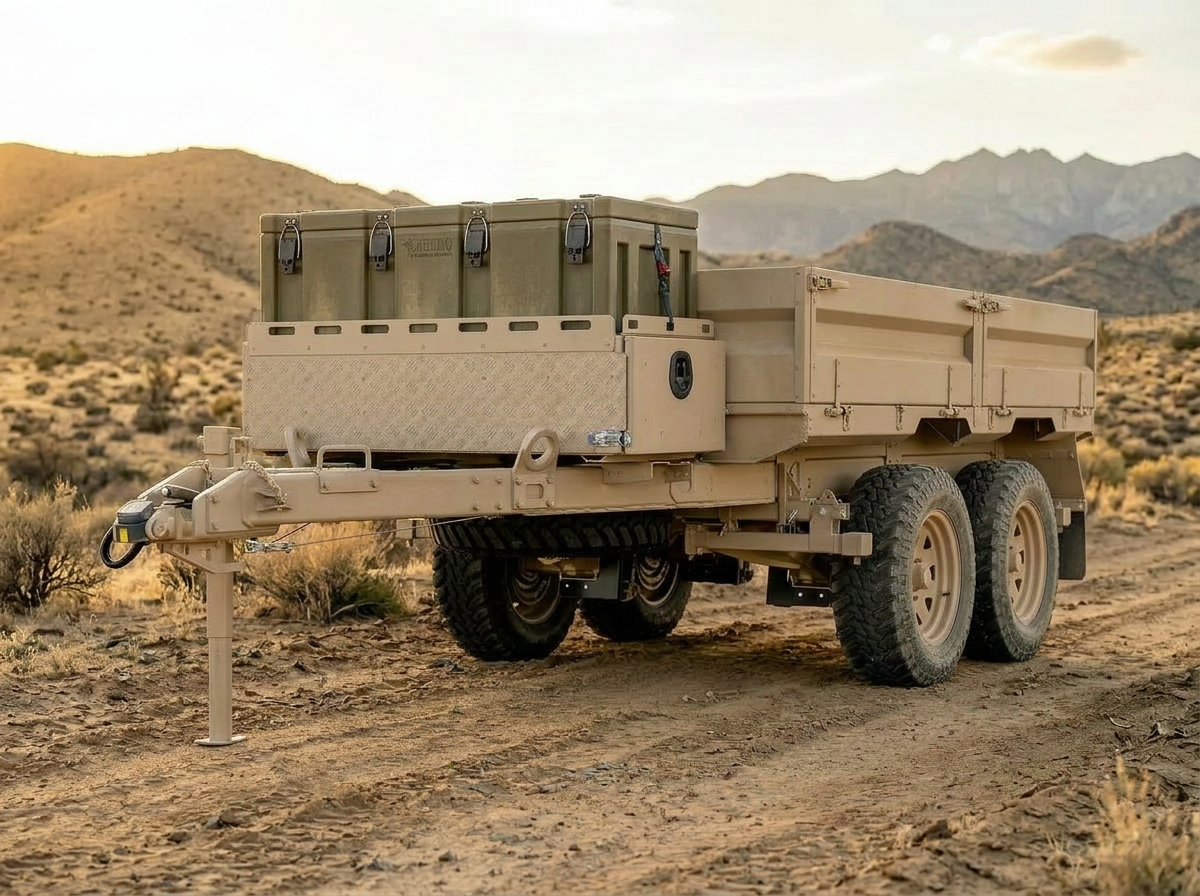

MAIN CHASSIS & UNDER BODY

  • Cruise Master DO45 Plus Off Road Trailer Hitch.
  • Full length 4.7 mtr, 125 x50 x 6mm Steel Chassis.
  • 1.8 mtr frontal draw bar length.
  • Twin rear heavy duty recovery points.
  • Interlocking chassis cross members.
  • Trailer hand brake cables.
  • Front hand brake lever bash plate.
  • Front D Shackle recovery point.
  • Two tie down and lift points on front draw bar.
  • Under body spare tyre mount.
  • Manutec, pin locking, swivel bracket and heavy duty side wind jack stand.
  • 250 Ltr Military Cargo Case (Green)

PAINT COLOUR OPTIONS

  • Desert Tan Satin.
  • Olive Drab Matt.

TRAY CONSTRUCTION

  • 2 – 150 x 50 x 5mm C Section Aluminium Sub frame chassis rails.
  • 12 – 50 x 25 x 30 x 4mm galvanised RHS Decking cross members.
  • All decking cross members are attached to the chassis sub frame with M12 – bolts and RivNuts.
  • The decking side rails are made from 5mm Zinc Plated Steel with tie down points incorporated into the side rail design.
  • TheRHS cross members also incorporate 9 rows of 81 additional M12 tie down points.
  • Decking plate is made from 4mm Aluminium plate.
  • Decking plates are also attached with 6.5mm structural Rivets.
  • Removable Front Head Board.
  • Removable tail gate and drop sides.

TRAILER RUNNING GEAR

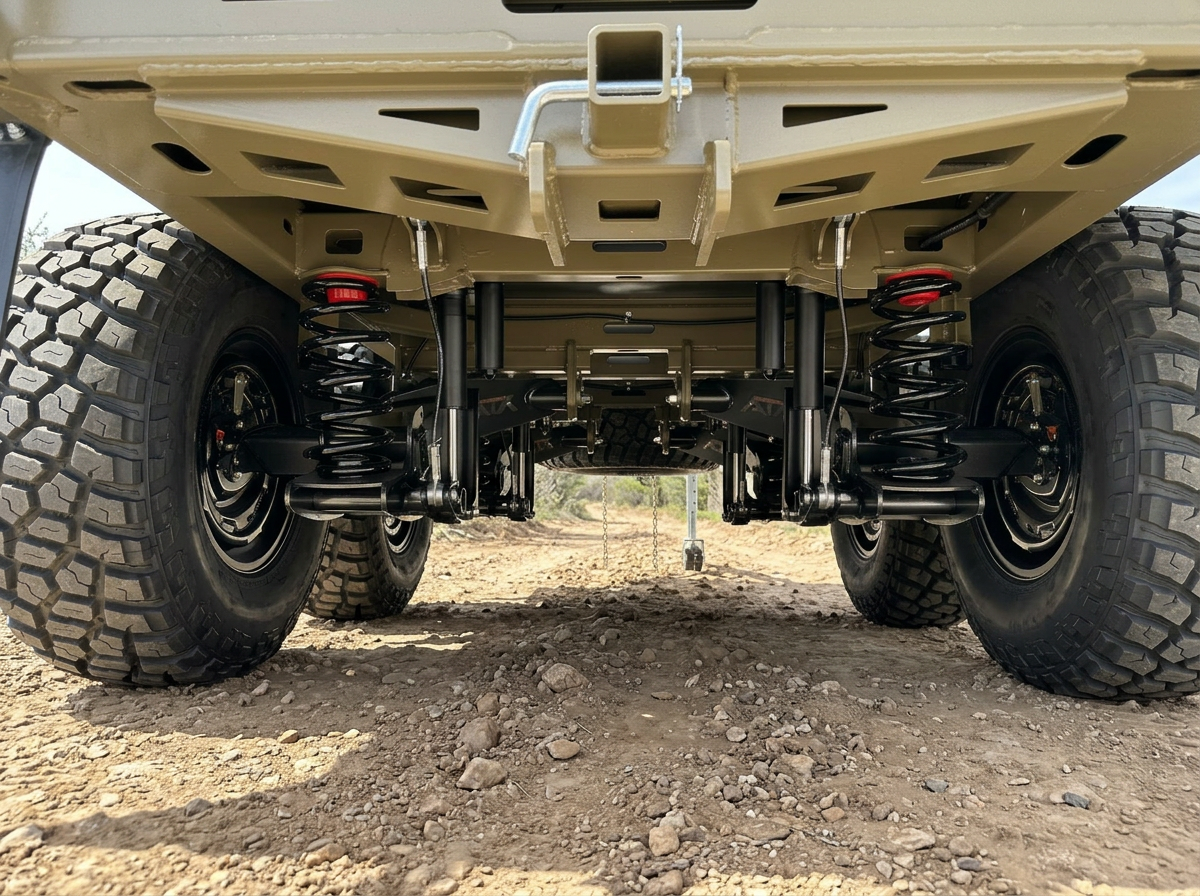

  • 2 ATX 1,850 kg or 2,250 kg Independent Coil Spring Suspension units.
  • 4 – 12 inch electric drum breaks.
  • Optional 4 Hydraulic Ventilated Disc Brakes and Hydra Star Pump.
  • 4 – Heavy duty large bore off road shock absorbers.
  • 125 x 50 x 6mm Hot dipped galvanised C section trailer chassis.
  • Twin modular, removable suspension assemblies.

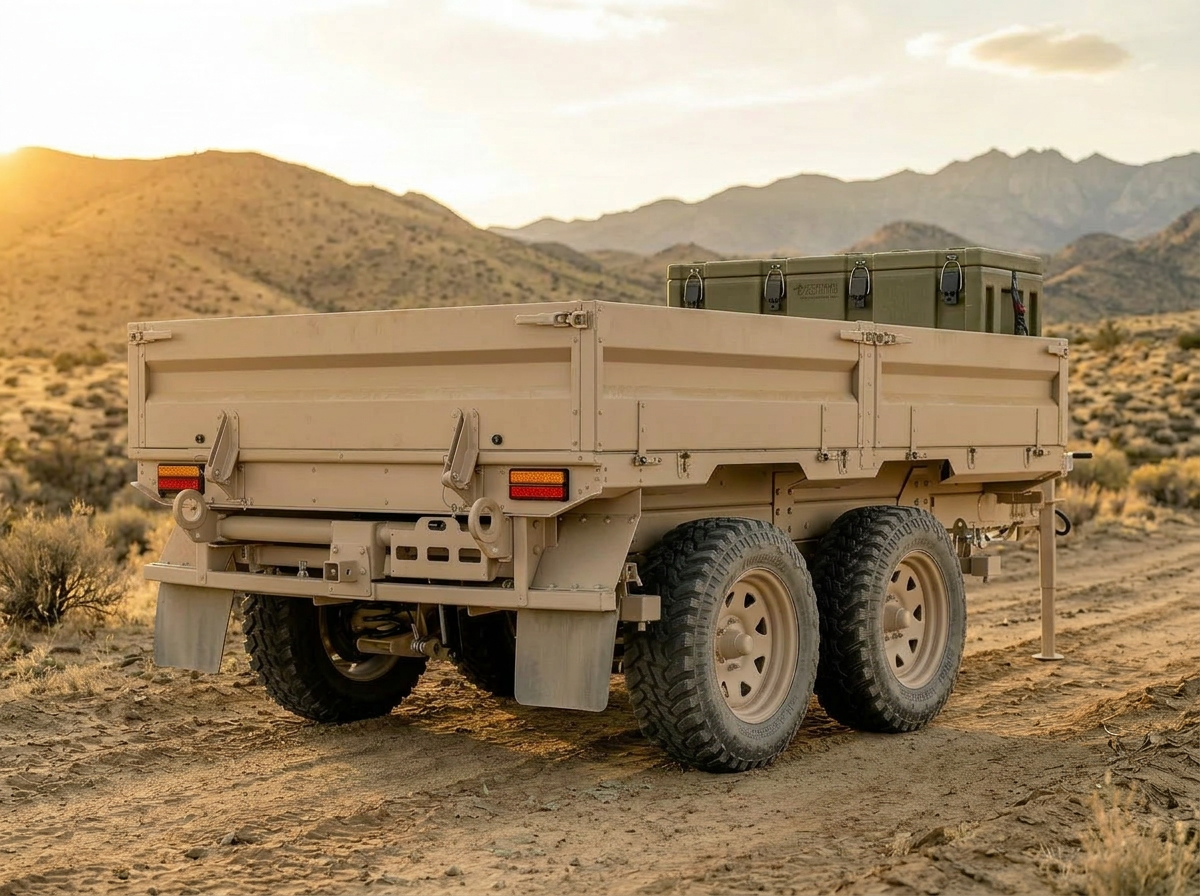

MAIN CHASSIS REAR

  • 2 Water proof resin filled LED trailer lamps.
  • Optional rear winch mounting point.
  • Optional under tray vehicle ramp storage.
  • Bolt on mud flap assembly.
  • Twin rear Recovery Points.
  • Rear chassis cross bar.
  • Two rear tie down and lift points.

WHEELS & TYRES

  • 5 – 265 / 7 5 / R 16 or 17. All terrain tyres.
  • 5 – 16 x 8 “ 6 stud steel rims.

M-H 4.7 EQUIPMENT TRANSPORT TRAILER OPTIONAL ACCESSORIES

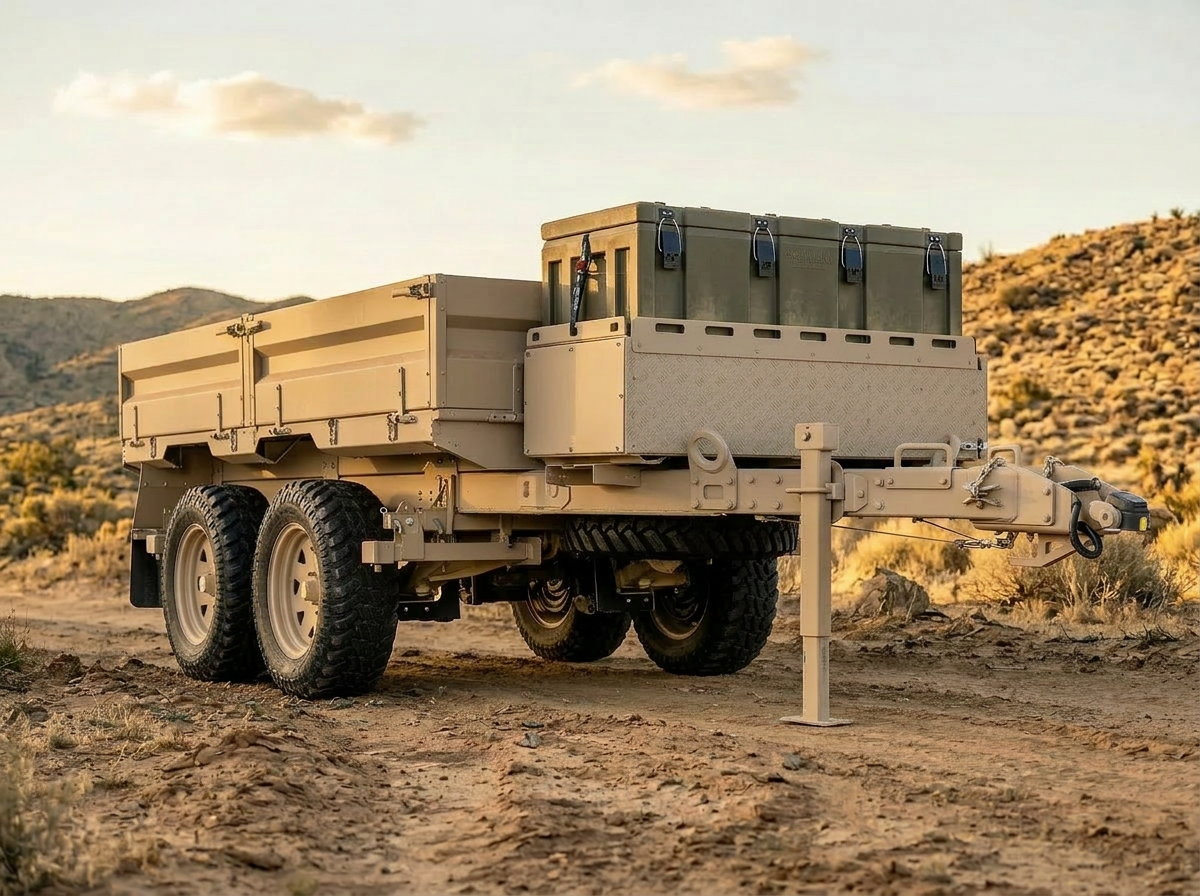

  • 187 Ltr Front Tool Box
  • 2 Front under tray tool boxes.
  • Canvas cover and galvanised support frame.
  • Axe Shovel & Mattock mounting frame.
  • Aluminium Vehicle Ramp Under Tray Storage (only available with specific dec configurations).
  • 2.6m Aluminium Vechicle Loading Ramps 2,500kg.
  • Internal tool box Battery tray.
  • 120 Ah Deep Cycle Battery.
  • 125 Ah Lithium Battery.
  • Red Arc Battery Charger.
  • ARB twin air compressor.
  • Tyre inflation and deflation system.
  • Hydraulic Disc brakes and pump.
  • Under Tray Stabiliser legs. (Please note that the under tray tool boxes can not be fitted once the stabiliser legs are attached)
