Unmanned Aerial I.S.R. Drone Operations Trailer.

Military Drone Surveillance, Reconnaissance, Command & Control Trailers.

Mobile U.A.V. Command & Control Platform.

Land Force Defence offers a range of stand-alone portable, rapidly deployable fixed and mobile site solutions for strategic operational reconnaissance, battlefield surveillance and counter drone defence systems.

The M-H 4.7 U.A.V. and U.G.V. Trailers can be fitted out and integrated into third-party platforms for both Government, Defence and Commercial systems. Providing a rugged off road platform perfectly suited for rapid response into remote areas.

Providing solutions for active situational awareness and threat response for mobile missions.

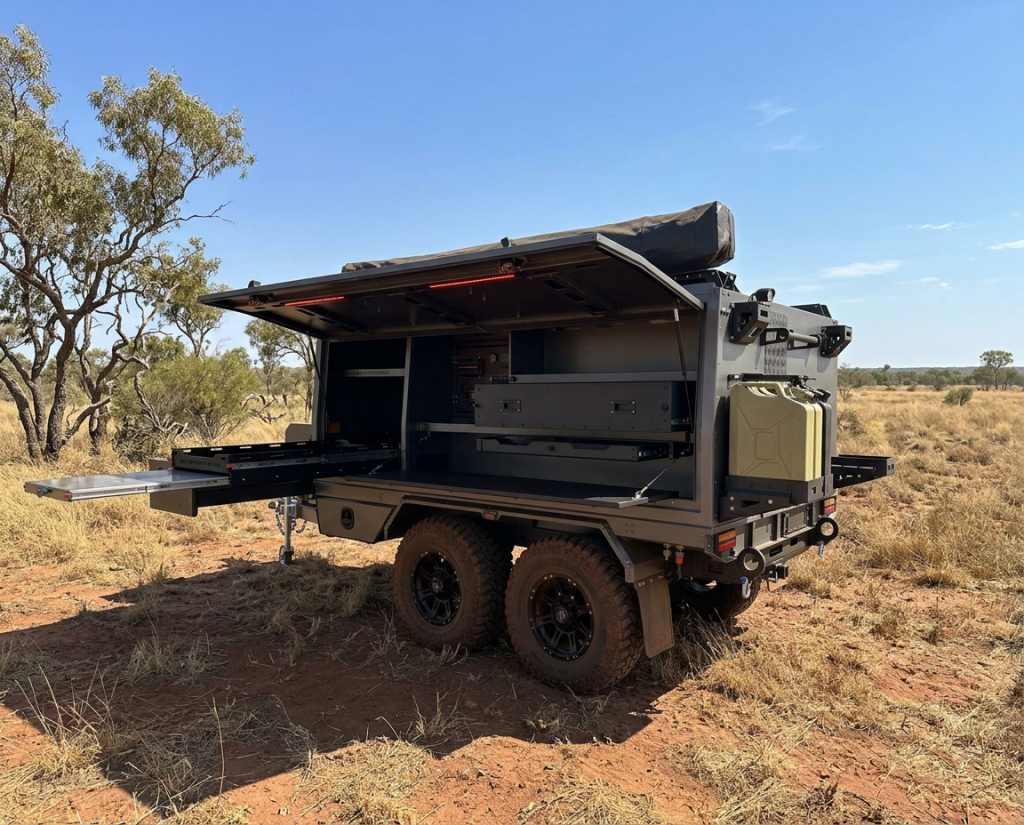

These Off Road Trailer were specifically designed with an open customizable interior ready for fit out.

Trailer Concept of Operations

The Military UAV “Trailer Concept of Operations” (CONOPS), is designed to enhance the capabilities of a three-person agile field maneuver team with a platform that supports an electrified multi-copter Intelligence, Surveillance, and Reconnaissance (ISR) system, providing critical overwatch capabilities. The versatile design also integrates the option to function as an air-mortar team, with provisions for additional payload and ammunition requirements. The system also supports optional drone tethering for enhanced Counter-Electronic Warfare (EW) capabilities and an optional Counter-Unmanned Aircraft System (C-UAS) for robust mission team protection in dynamic operational environments.

The U.A.V. Surveillance Drone – Reconnaissance – Command & Control Trailer can be set up to cater for a wide variety of industries across the board. Ranging from, drone journalism, search and rescue, disaster response, asset protection, wildlife monitoring, fire fighting, communications relay, healthcare, agriculture and many more.

A heavy-duty off-road trailer is an essential tool for anyone who needs to transport gear and equipment into the middle of nowhere. These heavy duty Off Road Trailers are designed to handle the harshest conditions and toughest environments, and are built to withstand impacts, resist corrosion, and protect their contents from dust and water.
With large, heavy-duty off road tyres, military suspension system, high ground clearance and waterproof dust seals, these trailers are the perfect solution for anyone who needs unparalleled off road capability and reliability.

STANDARD INCLUSIONS

  • 187 Ltr Front aluminium slide out storage box.
  • 2 – Twin Rear jerry can mounts.
  • Front and rear chassis lift and tie down points.
  • Rear canopy ladder and backing plate.
  • Twin rear aerial and led light mounts.
  • Front LED light mount.
  • Front canopy aluminium stone guards.
  • 4 – Corner Canopy lifting points.

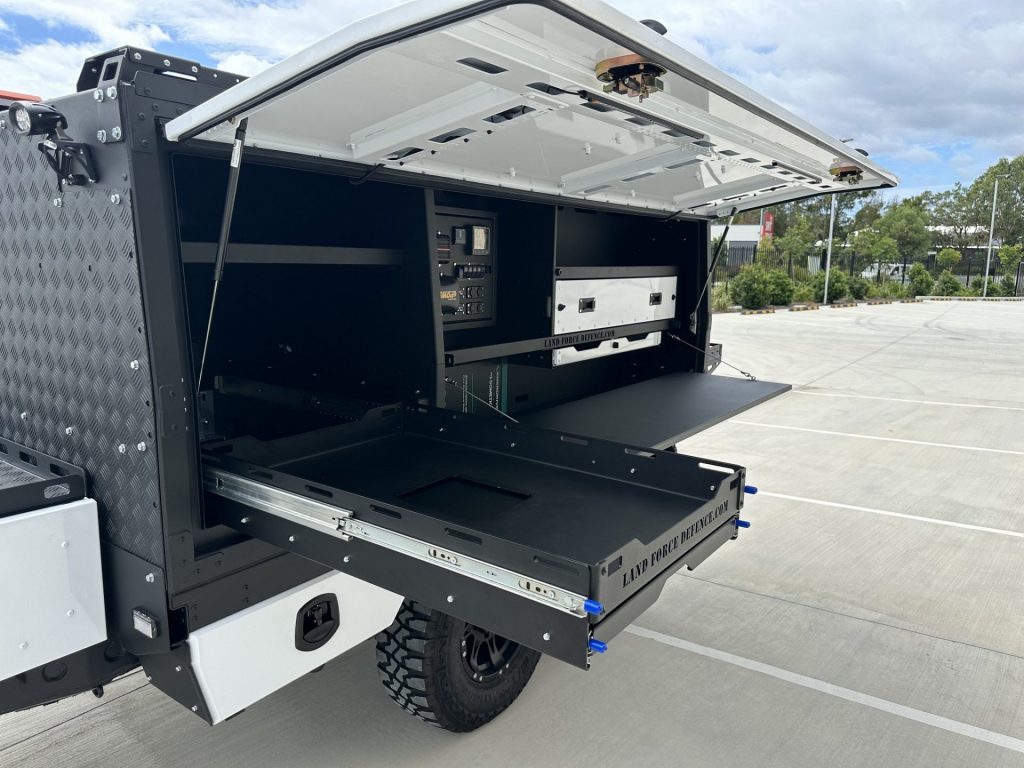

  • 160 ltr front passenger side pull out storage slide.

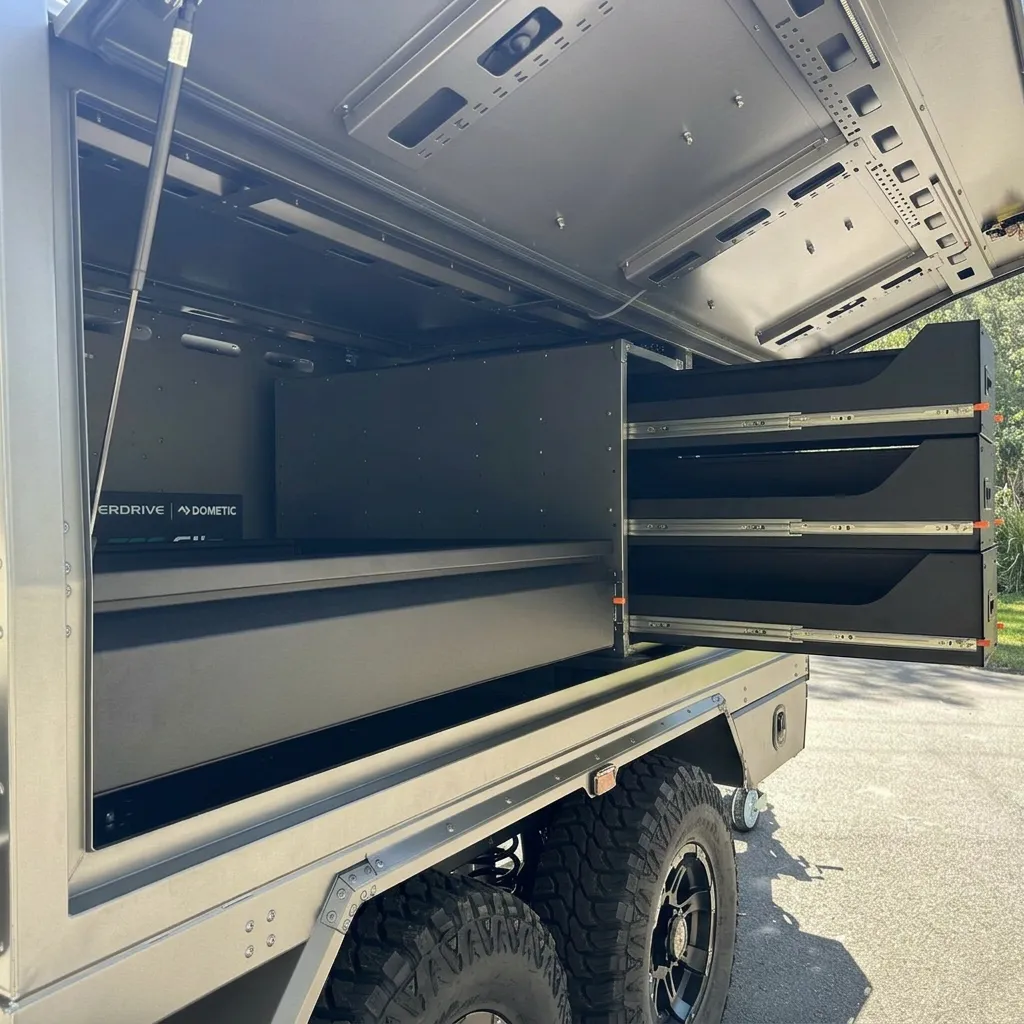

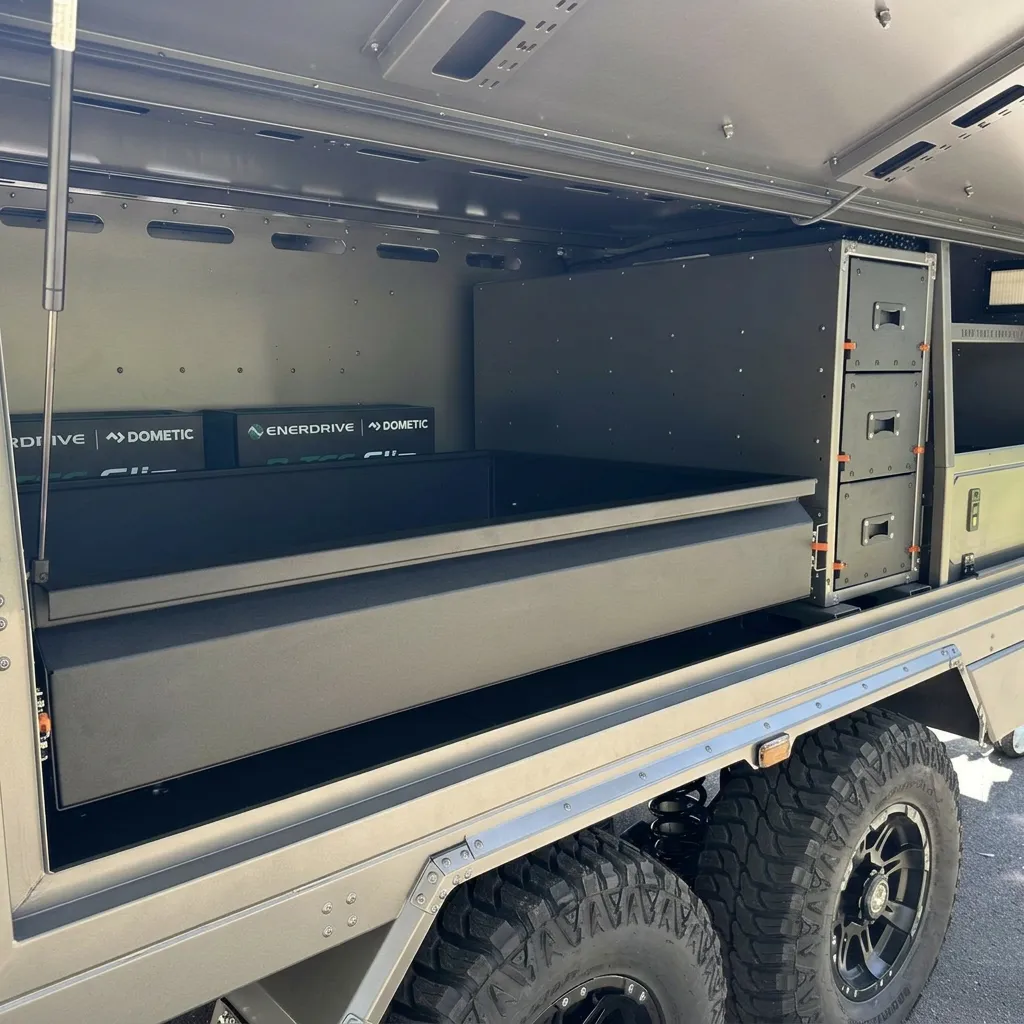

  • Large pull out Driver Side storage drawers.
  • Electrical control box & battery management system with USB, ACC and Andersen plug 12v charging points.
  • 240v 400w inverter.
  • 240v 3000w inverter / charger.
  • Red Arc Battery Charger.
  • 2 12v – 400 AH Lithium batteries.
  • 2 – 100 AH Back up Lithium batteries.
  • Twin Internal battery tray.
  • 140 ltr water tank.
  • Pressure activated water pump.
  • External inlet and outlet water points.
  • Internal air recirculating fans in front compartment.
  • Andersen plug 12v power outlets inside front compartment.
  • Air pressurisation vent and twin filters.
  • 1.8m drop down passenger side work table.
  • Large passenger side storage shelves.
  • Internal dual colour press button LED lights.
  • Rear tow coupling adapter point.
  • Rear heavy duty recovery points.
  • 2 – Rear mounted work lights.
  • Front LED work light.
  • Two Rear Jerry can mounts.

OPTIONAL ACCESSORIES.

  • 180 Ltr Pelican case mounted on top of front storage box.
  • Twin under tray front storage boxes.
  • Bush Company 270 XT MAX Awning.
  • Rear Mounted Smittybilt Gen 2 X20 10 Electric Winch 10,000 lbs 4,535 kgs.
  • Side door mounted axe and shovel mounts.
  • ARB twin air compressor.
  • Tyre inflation and deflation system.
  • 200 Ah Lithium Battery Upgrade for twin back up batteries.
  • 190 watt roof top mounted solar panel.

What’s so different about our Off Road Trailers ?

It all starts from the ground up with our Unique, Military Off Road chassis & Suspension system.

Our Off Road Trailers are significantly different to most other off road trailers on the market. They have been specifically designed and engineered to handle rugged off-road conditions. Unlike other Surveillance trailers that may struggle in rough terrain. These trailers are built with high-quality materials and equipped with features like reinforced chassis bracing, heavy-duty independent military suspension systems and large off-road tires to provide maximum stability and braking power. Land Force Defence trailers feature unique and innovative design elements such as extra storage space, customizable interior layouts, and 2 different interchangeable body options. All of these factors set our Off Road Trailers apart from the competition and make them ideal for customers who demand the toughest and the best.

One of the main design features of our trailer frame is the Land Force Defence Military Transport Trailer Chassis. Which uses 125 x 75 x 4mm heavy duty chassis rails that run the full length of the trailer chassis giving the body and sub frame maximum support as it negotiates rough off road terrain. The hot dipped galvanised chassis is made of laser cut box section cross members and open ended rectangular hollow section steel allowing for easy wash down and cleaning, with no closed in areas where mud, sand and salt can get trapped and cause corrosion.

The trailer chassis also comes with a rear mounted winch plate, recovery points and the ability to mount a 140 ltr water tank through the mid section of the chassis.

Sitting above the main chassis you will find another secondary chassis sub frame that supports the aluminium, monocoque trailer body.
Unlike other trailers, the M-H 4.7 U.A.V. uses a modular chassis and body constructions style. Where the body is separated from the chassis with the use of a 125 x 50 x 3mm RHS sub frame. This allows you to lift and remove the body from the chassis giving you access to wiring looms, water tanks, water lines etc for maintenance and future upgrades.

Remote off-road TRAVEL is what this trailer was made for.

Being conscious of the restricted maneuvering area on off road tracks we have carefully thought through the body design, dimensions and over all ground clearance.
Allow you to venture out into areas that conventional off road vehicles and off road trailers simply wouldn’t be able to fit.

The long sharp angle draw bar configuration also gives you an advantage over traditional A frame trailer designs by allowing you to maneuver the trailer into an over 80* jack knife position behind the tow vehicle giving you a much tighter turning circle and reversing capability off road.
By keeping the trailer dimensions within the width of most tow vehicles we have also been able to increase the maneuverability off road through tight areas, along narrow tree lined outback tracks, or through tight twisting mountain roads.

Keeping the trailer dimensions in line with the tow vehicle also improves vehicle handling and fuel efficiency. By reducing the amount of wind and drag that you are likely to encounter during higher speed on road travel.

LAND FORCE DEFENCE MILITARY TRANSPORT TRAILER CHASSIS

TRAILER WEIGHTS AND DIMENSIONS

“The R.A.S.V. Off Road Camper Trailer is a lightweight option, weighing in at just over 1300kg, compared to other similar, yet much heavier off-road camper trailers available in the market.”

  • TARE: From 1300kg. to 1500kg depending on trailer model
  • ATM: 3500kg.
  • Ball Weight: 55kg.
  • Total Length: 4.78 M
  • Width: 1.92 M
  • Height: 1.950m
  • Internal Storage Capacity: approx 6,000 LTRS

SUSPENSION

Land Force Defence Off Road Suspension.

With its Heavy Duty design, the Land Force Defence coil spring suspension system is the go-to option for those seeking the best all-terrain suspension for their Off Road trailer. Our experienced in-house engineering team has meticulously crafted the entire system to provide unparalleled performance in even the toughest of conditions.

Coil Spring Suspension.

This makes the M-H 4.7 U.A.V. an ideal choice for anyone who needs a trailer that can withstand heavy-duty off-road use and withstand harsh outback conditions in remote areas. With its robust 50mm stub axles, extra-large 2 or 3.3T VC bearing combination, premium twin shock absorbers, and lockable toe and camber adjustment, you can enjoy peace of mind knowing that your trailer is built to last. And, if your needs change over time, the interchangeable suspension components can be easily upgraded to accommodate your changing requirements. With the option to upgrade to air bag and disc brakes variants, the M-H 4.7 U.A.V. provides versatility and longevity, making it an ideal choice for anyone who requires a reliable, heavy-duty off-road trailer.

MAIN CHASSIS & UNDER BODY

  • Cruise Master DO-35 Off Road Trailer Hitch or Pintle Ring.
  • Full length 4.7 mtr, 125 x75 x 4mm Steel Chassis.
  • 1.8 mtr frontal draw bar length.
  • Twin rear heavy duty recovery points.
  • Interlocking chassis cross members.
  • Trailer hand brake cables.
  • Front hand brake lever bash plate.
  • Front D Shackle recovery point.
  • Under body spare tyre mount.
  • ARK XO 750 Heavy Duty side wind jack stand.

STANDARD POWDER COAT COLOUR OPTIONS

Internal and external body coating comes with a Pro Texture Stone and Scratch Resistant Powder Coat. Comes in Matt Black, Army Green or Desert Tan.

Full Gloss Door and Accessory Highlight Colours

  • DESERT TAN
  • CAMOUFLAGE GREEN
  • GRAPHITE GREY
  • ANTARCTIC WHITE
  • BLACK ONYX PEARL

Trailer colours can also be customised to any of the Dulux powder coat colour range on request.

TRAILER RUNNING GEAR

  • 2 – 1,850 kg or 2,250 kg Independent Coil Spring Suspension units.
  • 4 – 12 inch electric drum brakes.
  • 8 – Twin, Heavy duty large bore off road shock absorbers.
  • 125 x 75 x 4mm Hot dipped galvanised box section trailer chassis.

MAIN CHASSIS REAR

  • 2 Water proof resin filled LED trailer lamps.
  • Rear winch mounting point.
  • Twin under body Recovery Points.
  • Rear chassis cross bar.

WHEELS & TYRES

  • 5 – 265 / 7 5 / R 16. All terrain tyres.
  • 5 – 16 x 8 “ 6 stud steel rims.
